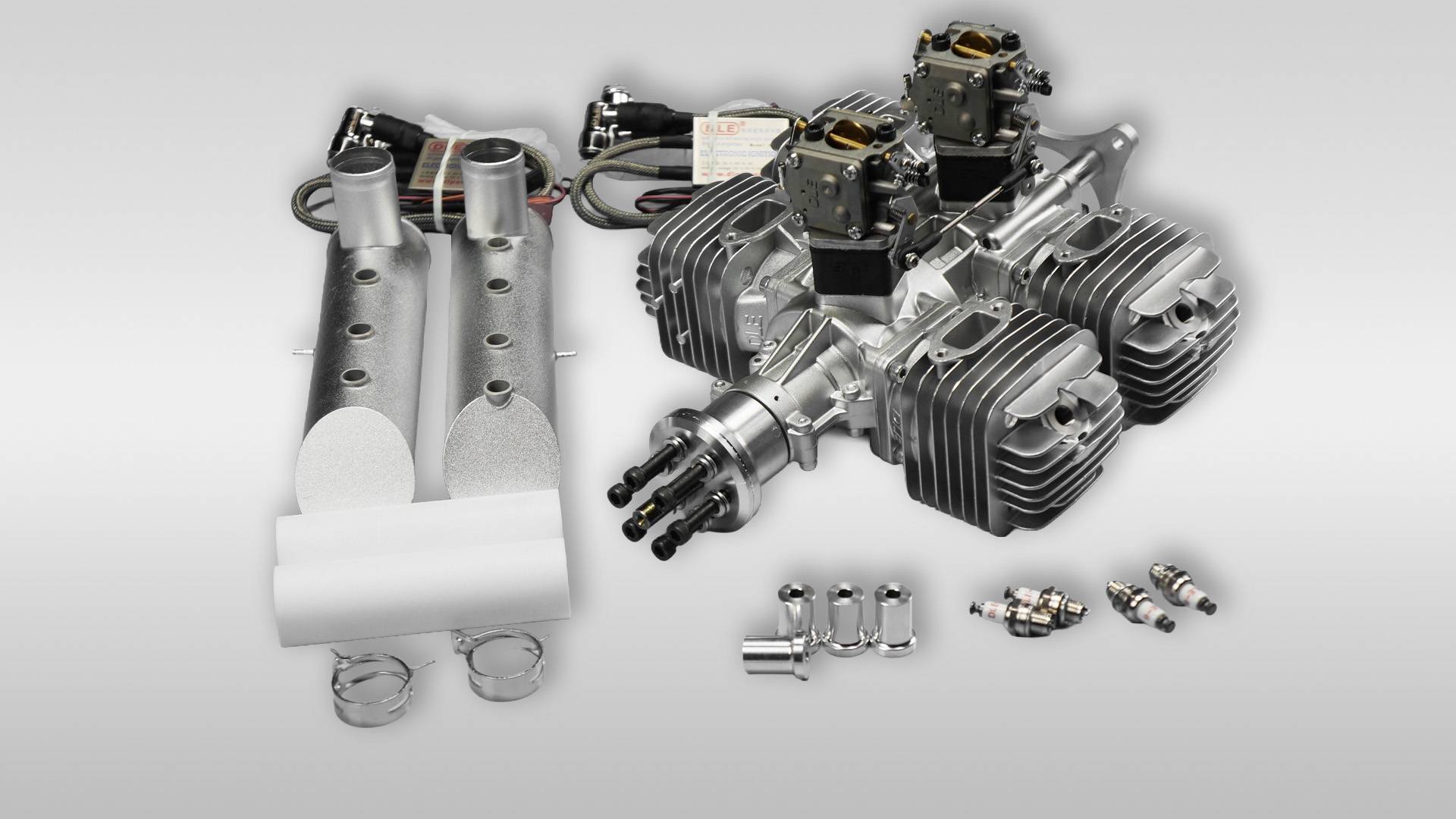

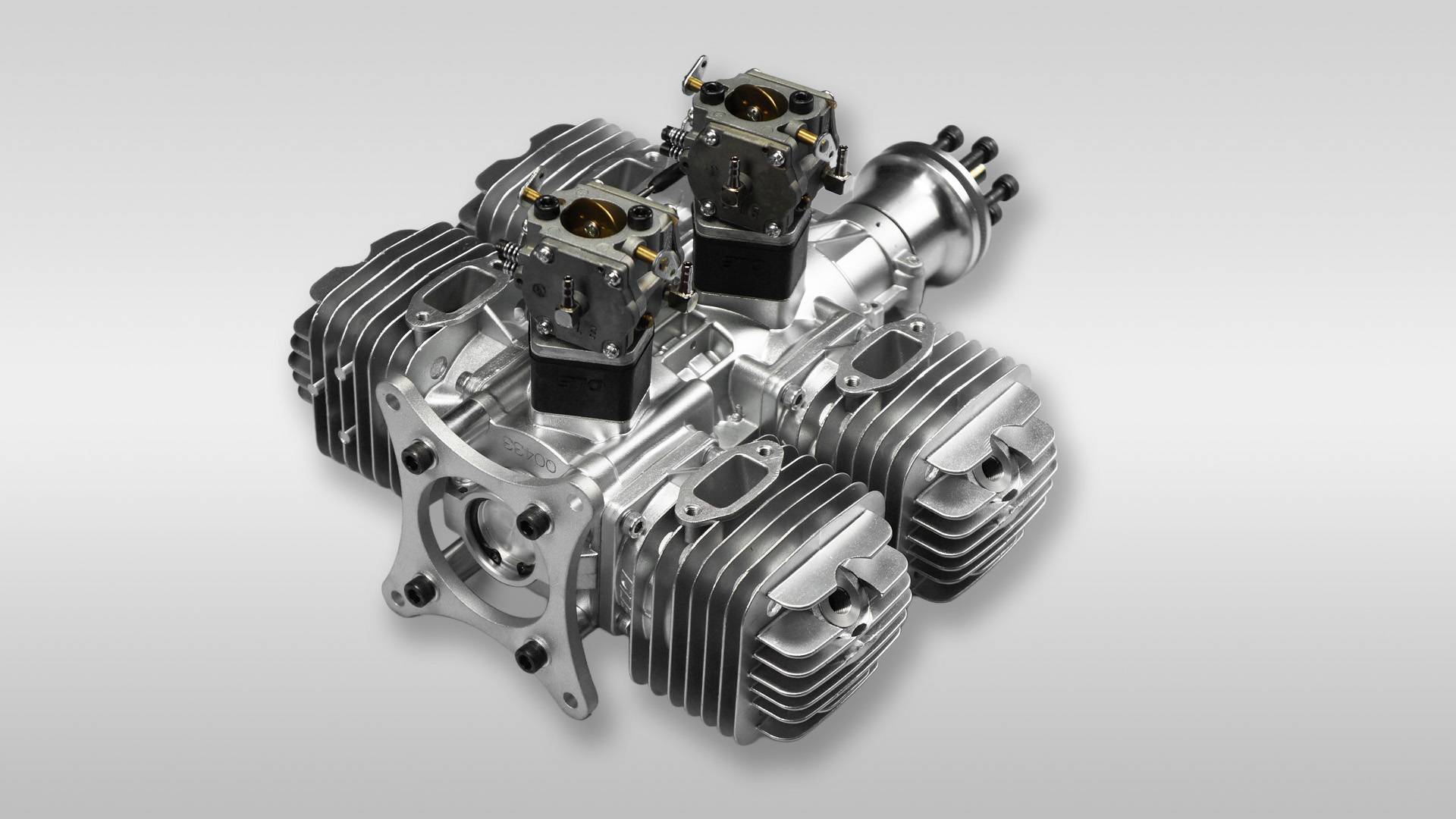

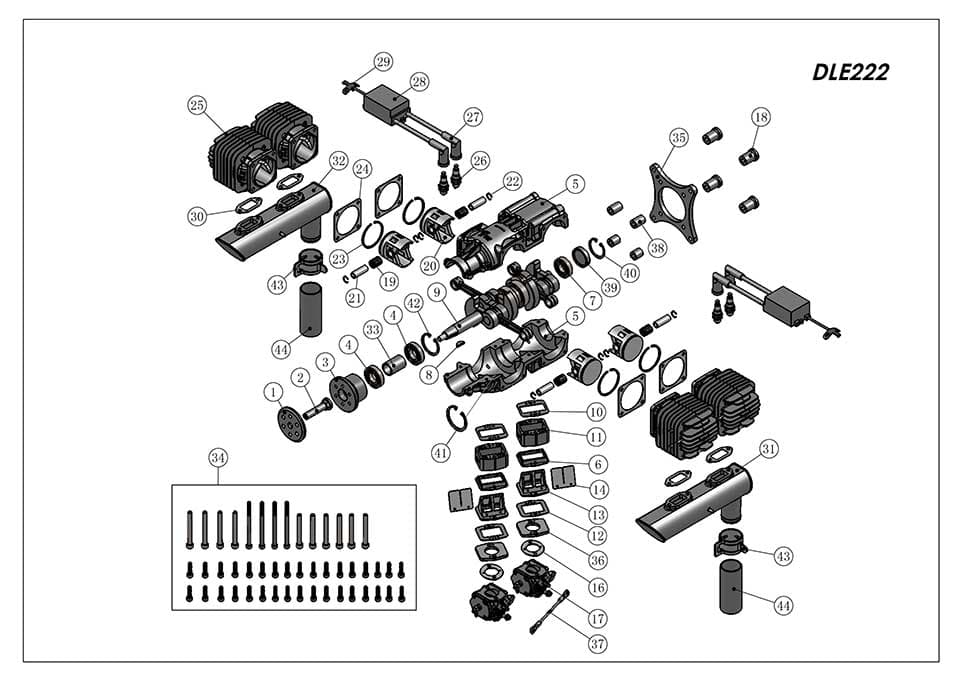

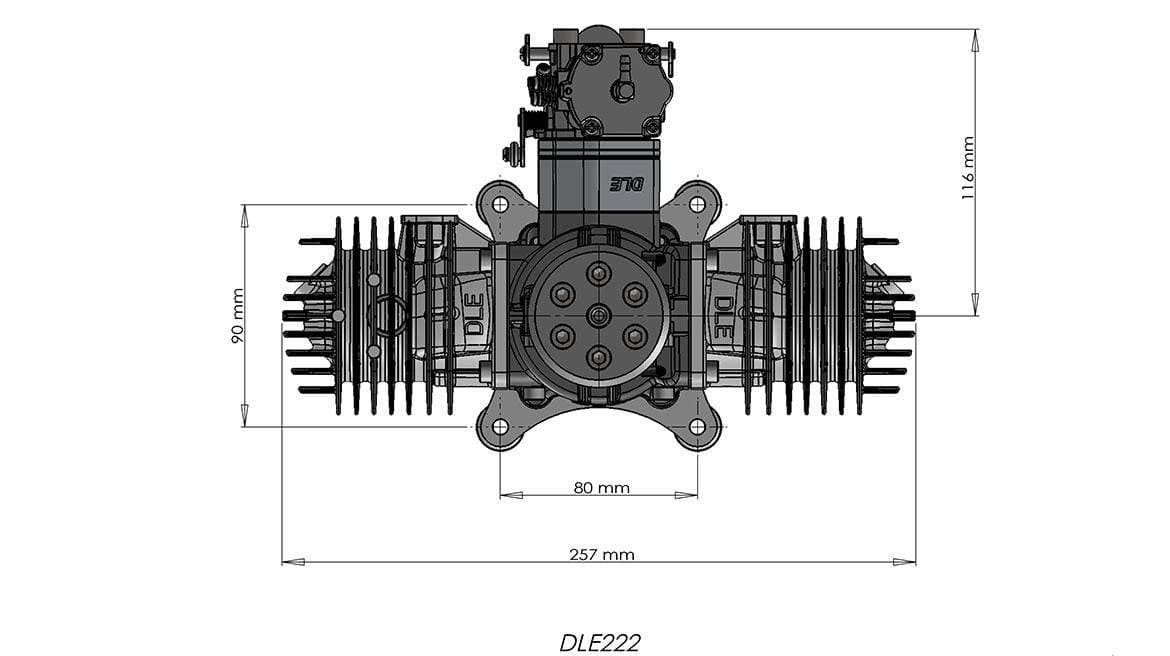

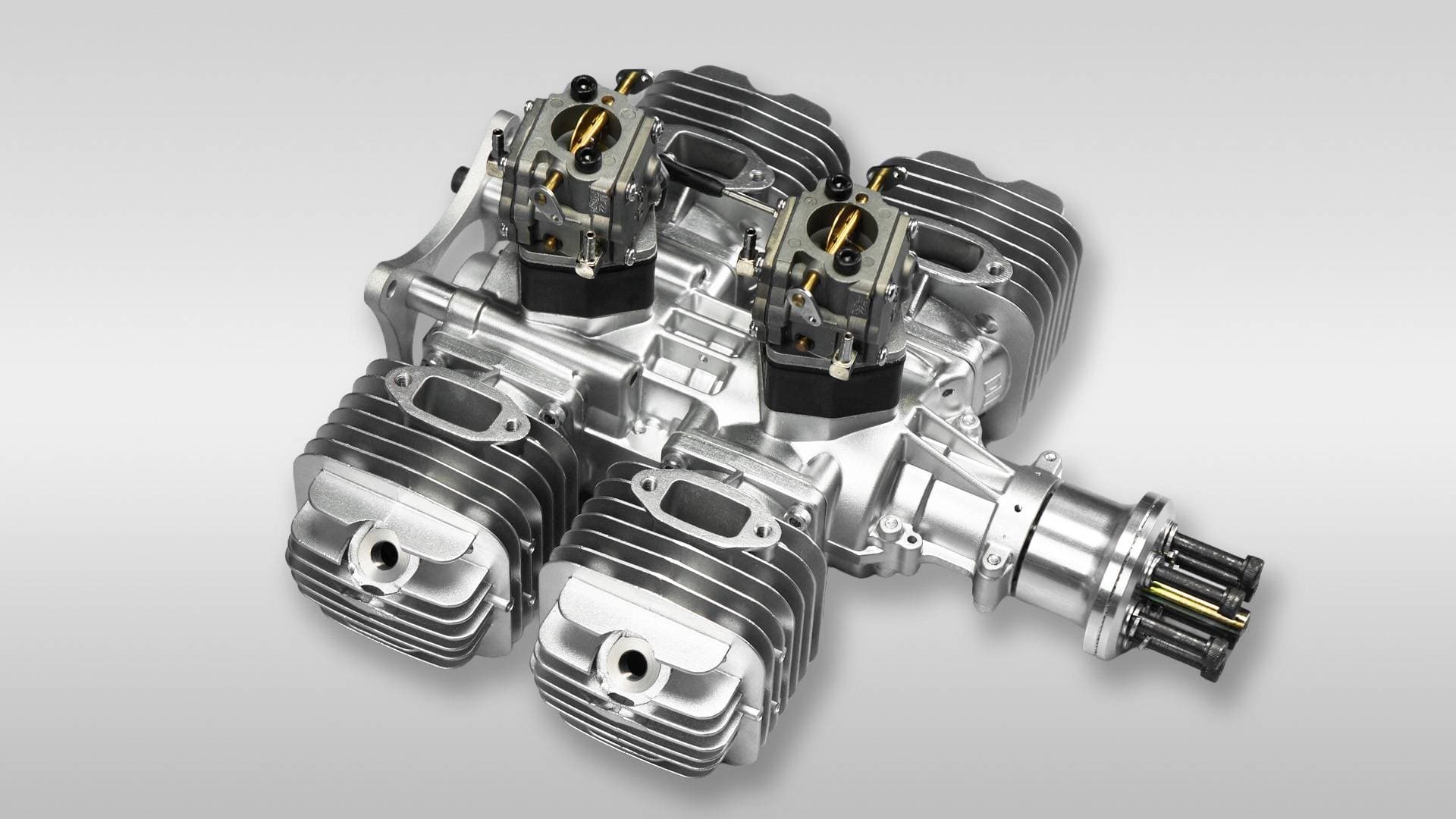

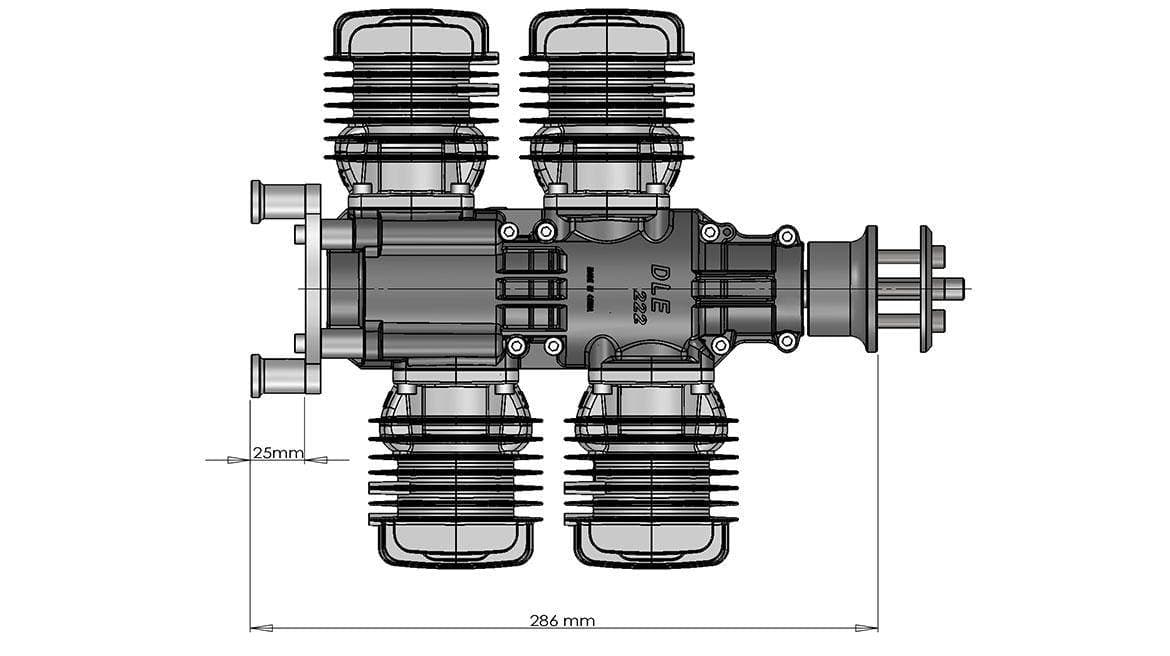

DLE222 RC Model engine is a 222CC large displacement, four-cylinder two-stroke design with side exhaust, providing powerful and stable power for your model aircraft to fly more smoothly. Built by a professional team, using high-quality materials and advanced technology, it has high durability and reliability. It provides detailed parameters, instructions for use, 3D modeling, installation dimensional drawings, and exploded views to facilitate your comprehensive understanding and installation. It is an ideal choice for you to pursue the ultimate flight experience!
Parameter
|
Performance : |
21.5HP/7500rpm |
|
Idle Speed : |
1000 rmp/min |
|
Static Thrust : |
51kg/100 meters Altitude |
|
Static Thrust : |
44.6kg/1800meters Altitude |
|
Recommended Propeller : |
32x10 ; 32x12 ; 34x10 ; |
|
Spark Plug Type : |
NGK CM6 |
|
Displacement : |
222.5cm3 |
|
Diameter × Stroke : |
45mm×35mm |
|
Compression Ratio : |
7.6：1 |
|
Lubrication Ratio : |
30:1 |
|
Weight of Main Engine : |
4860g |
|
Weight of Exhaust : |
470g |
|
Weight of Ignition : |
380g |
|
Ignition voltage： |
4.8V-8.4V |
Download
FAQ
What's the ignition voltage? Can I use lithium battery?
The ignition voltage : 4.8-8.4 V , Max voltage : 9 V
Can I use synthetic lubricant oil instead of mineral oil ?
It is strongly recommended used synthetic lubricant oil, especially full-Synthetic Oil, cause it's not only can improve the engine performance but also can prevent carbon accumulation in piston.
Some carburators has Two tubes ,which one is contact to fuel tank ?
The black nipple is fuel inlet, and brass nozzle is the air inlet ,they can make the air pressure which in carburetor keep balance.
Does the DLE engines has been started and adjusted before delivery ?
All DLE engines key components has been tested before being delivered from the factory, such as ignition, carburetor, etc. but the engine hasn't been started.
Does DLE provide after-sales warranty service ? How long is the warranty ?
All the DLE engines sold out enjoy one year warranty .if failure to running when first use ,we will replace a new one for customer. If the engine can't start for reasons of quality problem , we will provide components to dealers , and dealers will repair it.
There are Three wires in ignition ，all wires are female connectors. There are Two black plugs and One red plug, if the red plug is designed for battery ,then what's the purpose of other Two plugs?
Each DLE engine's ignition has Three wires , the red plug connect to battery, the plug which has black oil on surface connect to sensor, and the other one connect to rated tachometer .The wire which contact with tachometer can't contact to sensor .
